Brand Name : TOPLED
Model Number : P8
Certification : CE ROSH FCC
Place of Origin : CHINA
MOQ : Negotiation
Price : Negotiation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000 Square Meters/month
Delivery Time : 5 Square meters /10 -15 working days
Packaging Details : Wooden cases, honeycomb cases, flight cases for your option.
Name : P8 Outdoor Fixed LED Mobile Billboard
Pixels : 8mm
Module Dimension : 320x160mm
Optimal Viewing Dist : >8m
LED Type : SMD3535
Brightness : >=6500cd/sqm
P8 Outdoor Fixed LED Mobile Billboard For Commercial Advertising
Specification:
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Display | Full Color |
| Module Size | 320mm x 160mm |
| Module Resolution | 40dots x 20dots |
| Drive Duty | 1/3 Scan |
| Cabinet Weight | 45kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥6500 cd/sqm |
| Viewing Angle | H: 140°; V:140° |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Control Method | Synchronous, Asynchronous, |
| Certificate | CE, RoHS,ISO9001 |
1. Easy to Install: No need to do structure, can directly mounted the LED display on the wall with screws.
2. Easy to maintenance: The LED cabinets can be open from the front, maintenance person is easy to open and maintenance the LED Display from the front.
3. SMD 3-in-1 LEDs: Ensure seamless and flatness,wide viewing angle,nice video effect.
4. Support all formats of videos,graphics,images,texts,messages,flash,animation,etc.
5. High brightness can the brightness can be adjustable according to the surrounding environments.
6. Support PC online or offline control, also can remote control with asynchronous system,wifi control, 3G control.
![]() | ![]() |
![]() | ![]() |


|
|

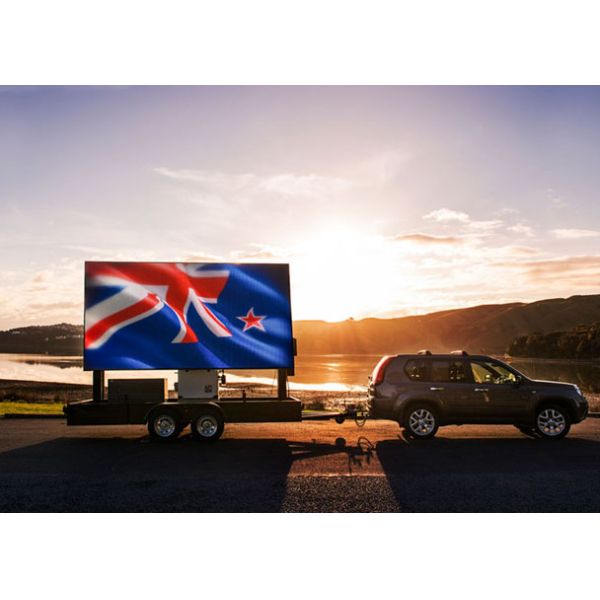

Outdoor LED Mobile Billboard For Commercial Advertising Images |
